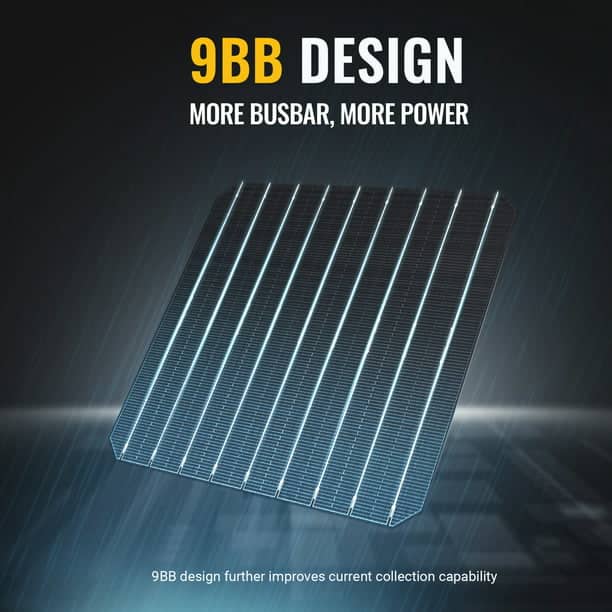

[9BB Cell Design]

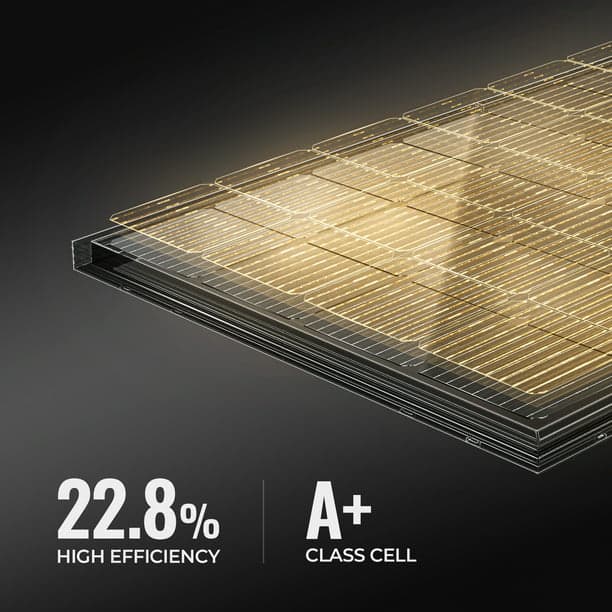

More Busbar, More Power. BougeRV 200W solar panel uses the high-level 9BB cell design which has a 22.8% highest conversion rate. Makes the solar panel have a longer service life. Increase the cell receiving surface, thinner ribbon reduces the covered area by 22%. Also, it can charge a 12V battery or charge a 24/48V battery by wiring several solar panels in series.
[Negative Ground PWM Controller]

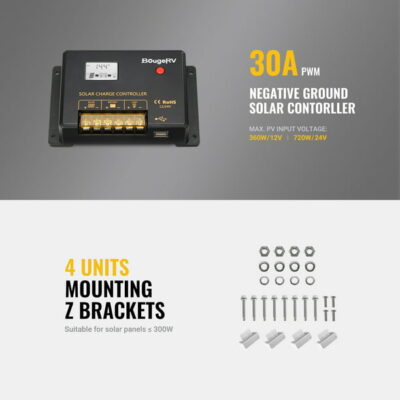

BougeRV’s 30A PWM charge controller adopted a negative ground design, be able to compatible with more vehicle system and not worry about the polarity. The backlit display makes it easy to check the parameter in the dark in real-time. To check the PV status and the Battery status easily, the solar panel regulator will cycle the PV input current and the battery voltage on the main interface with real-time value.
[30A PWM Controller Compatible With 12V/24V Batteries]
Compatible with SLD, FLD, GEL, LiFePO4, ternary lithium battery, and LTO battery), this solar charge controller is able to auto resettable after protected shut-off, and also able to wake up dormant lithium battery after setting to Li-battery type. Error code is helpful to check and fix the problem quickly and clearly.
[User Friendly & Easy Installation]

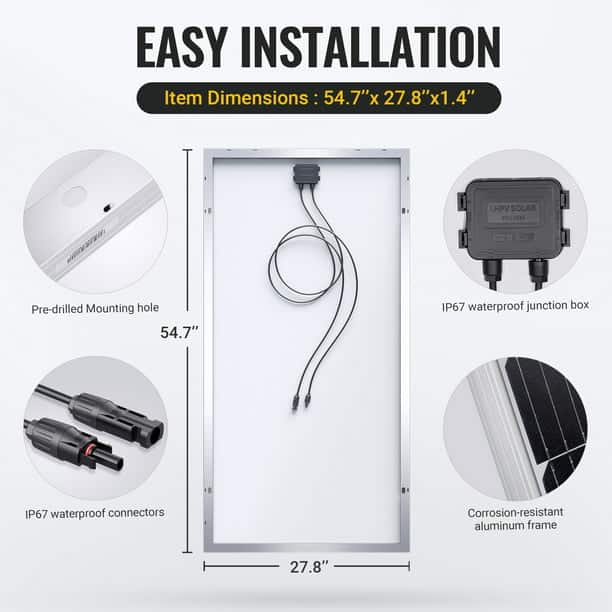

IP67 Rated Waterproof Junction Box can isolate environmental particles and low-pressure water jets. Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft Cable. Pre-drilled holes on the back of the panel allow you to quickly install solar panels without using heavy tools.
[Durable & Long Lasting]
BougeRV sturdy 200W solar panels can withstand high wind (2400 Pa) and snow loads (5400 Pa) and have excellent performance in low-light environments. Corrosion-resistant aluminum material can withstand the changing outdoor environment and prolong its service life.
Material: Glass-Aluminum Oxide
Voltage: 12 Volts
Amperage Capacity: 30 Amps
Maximum Voltage: 17.98 V
Maximum Power: 200 Watts
Weight: 22.9 lb
Size: 54.7″ x 27.8″ x 1.4″

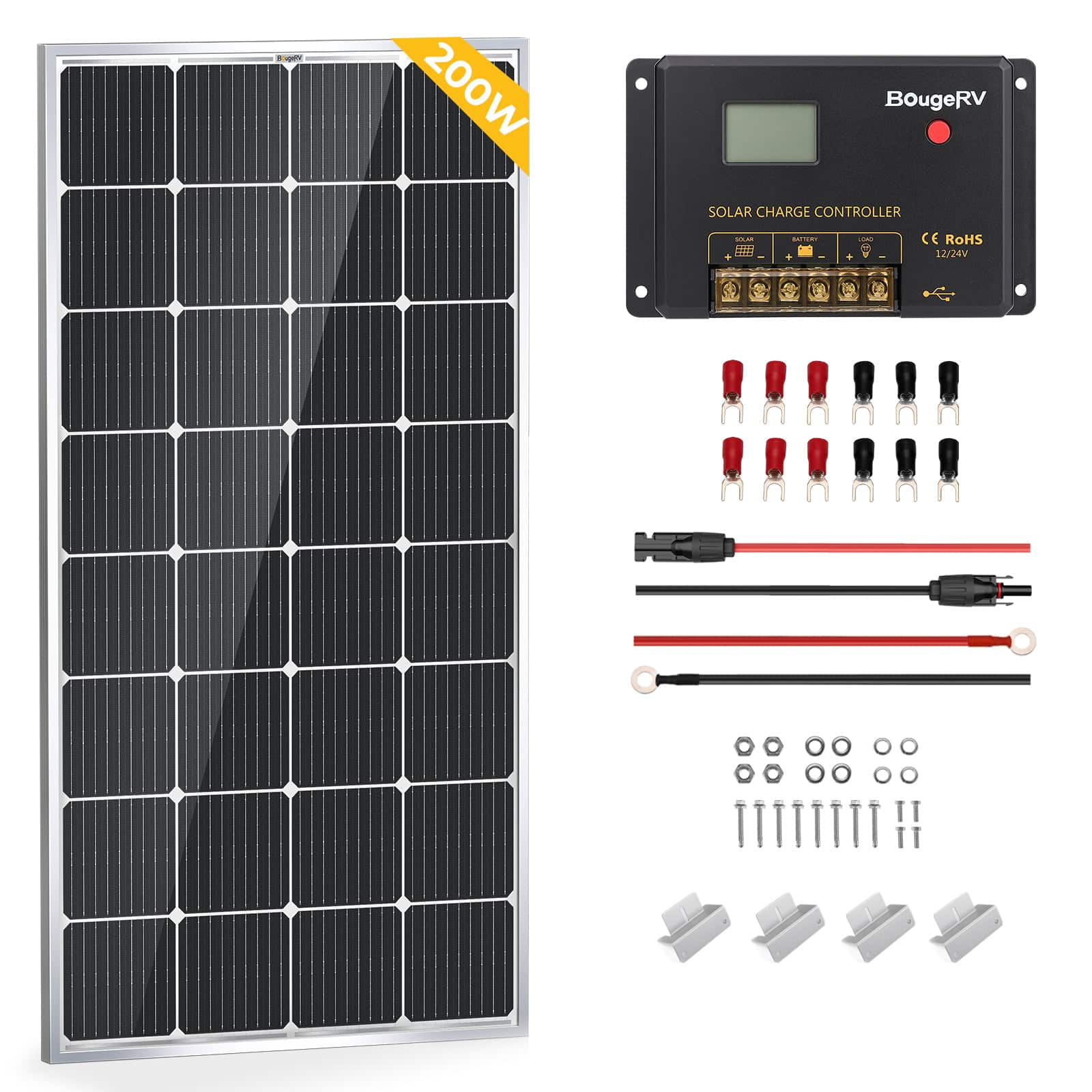

1 * 200-watt solar panel
1 * 30A PWM controller
1 pair * 20FT/10AWG solar to controller cable
1 pair * 8FT/10AWG controller to battery cable
4 * mounting z brackets
BougeRV promises an 18-month product warranty and 25-years power warranty. Please contact us whenever you have any problem with BougeRV solar panel.
Q: For the 200w panel,In series you add voltage and have 200w, in parallel your get 19V approx, what’s the power? 400W?
A: In series, could get more voltage; in parallel, get more current.
But no matter whether you put these two 200W panels in series or parallel, the peak power is 400W.
Q: Is bougerv 9bb cell 200 watts mono solar panel compatible with bluetti 200max?
A: Yes, they are compatible.
We recommend charging bluetti 200max with (1~6) 9BB 200W solar panels connected in series.
