Description

Our EG4 Solar Kits come with everything you need to get up and running with off-grid solar power. The SRK-PLUS solar kit includes the new and improved 3,000W all in one power inverter, which comes with an upgraded solar input, allowing you to connect over 5,000W of solar panels to this beast!
Known as the Bumblebee, this all in one solar power inverter / charger has everything you could ever want, all backed by an industry leading and US based, 3-year warranty. You’ll also have your choice between the popular EG4 Lifepower4 or LL model server rack battery which will fit right inside the rack that’s included.
The 6 x monocrystalline solar panels we include in your kit will recharge your battery in under 3 hours of good solid sunlight and provide you more than enough power for running all of the essentials and then some!

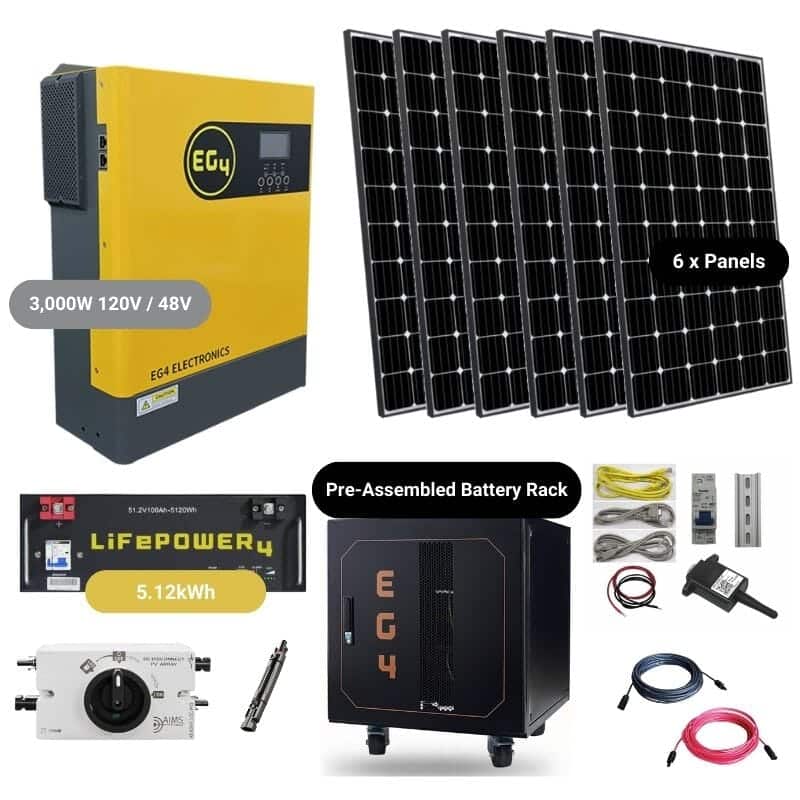

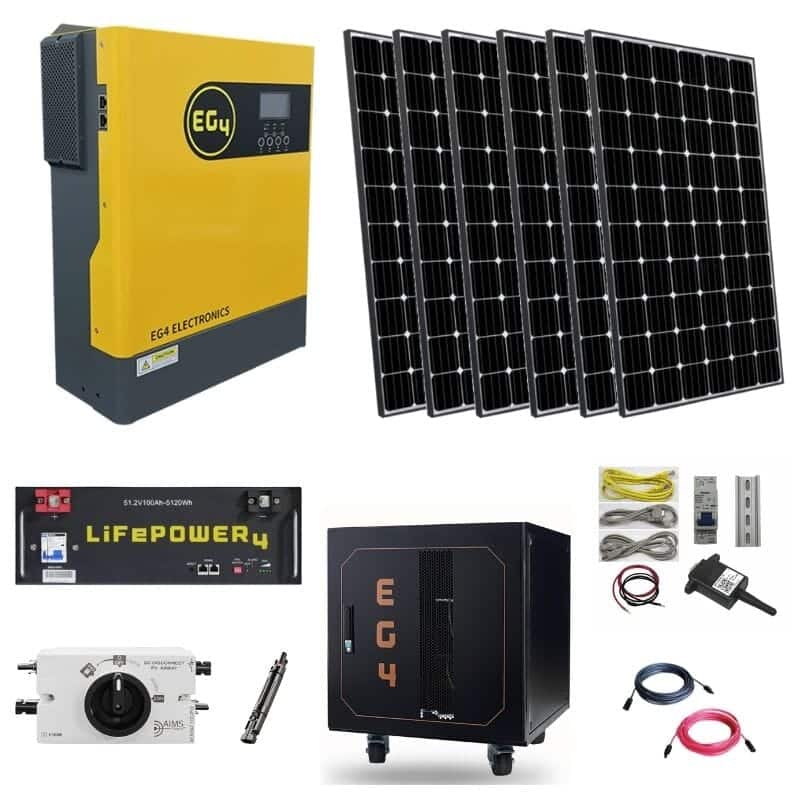

What’s Included In Your SRK-PLUS Solar Kit Order?
1 x 3000W 120V Output / 5,000W PV Input | 500 VOC 80A |  3000EHV-48 – 3-Year Warranty
6 x 400W Monocrystalline Solar Panels (2,400 Watts) – 12-Year Power Output Warranty
1 x Choice of EG4 Server Rack Battery [5.12KWH] Capacity – 5-10-Year Warranty
1 x EG4 3 Slot Server Rack with Built-In BusBar
1 x Wifi Stick with Remote Settings Adjustment
1 x 125A UL listed Nader Breaker and Din Bracket
1 x 6Ft 4 AWG Red and Black Battery Cables
1 x 10AWG 50 ft PV Cable Red & Black Set
1 x 10AWG 10 ft PV Cable Red & Black Set
1 x DC Single Pole Disconnect for Solar Array
1 x Custom Wiring Setup & Commissioning Diagram
Lifetime Customer Support (Phone, Email, Live Chat)
*Our kits include just about everything you need however you’ll need your own installation tools and grounding rods/wire as well as other optional safety components. We also highly recommend getting professional installation by a certified solar installer and/or master electrician.
EG4 3000EHV-48 Features
Built for Off-Grid
3000W Continuous Output
500 VDC Max Input
Parallel up to 12 Units for a 36kW System
Ideal for Small Barn, Cabin, RV Builds, Critical Load Panels, or Mini Split Air Conditioners
BMS Communication Available With All EG4 Batteries
Upgraded Active Cooling & Circuit Components(When compared to competing models)
Performance Components
Lightweight
Smaller Footprint Than Other Comparable Models
Overload Protection
Overtemperature Protection
Short Circuit Protection
User Customization via LCD Display
Reliability & Safety Testing
3-Year Warranty Supported and serviced out of Texas
EG4 3000EHV-48 Specifications
Rated Power:3,000W
Max PV Input:5000W
Battery Voltage:48V
Max Charging Current:80A
Max MPPT Operating Voltage:500VDC
Rated AC Output Power:120V
EG4 LifePower4 Server Rack Battery Features:
Tier One, A+ Cell Composition
99% Efficiency LiFePo4 16-Cell Pack
Max Energy Density
Flexible Racking Options
Environmentally Friendly & Lead-Free
Stress-Free Battery Bank Expansion Capacity
Longer Lasting; 10-20 year Design Life
Reliable Built-In BMS, Voltage, Current, Temp. and Health Management
Entire Battery UL Listed (BBFX2.MH65889)
EG4 LifePower4 Additional Information
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Kilowatt-hour(s): 5.12kWh
Dimensions: 17.4″ x 18.5″ x 6.1″
Design Life: +15 Years at 80% DoD
Communications: RS485
EG4 LIFEPOWER4 Battery Review – Watch Now:
The EG4 Difference
EG4 Batteries are engineered and manufactured to be used in any situation. Our rack style batteries are simple to install and optimize floor space with a stackable design. Our waterproof batteries have welded terminal connections to protect in rugged climates. No matter your situation, EG4 has designed a battery perfect for your use.
EG4-LL [Lifetime Lithium] Best In Class Solar Rack Battery:

Upgraded EG4-LL (Lifetime Lithium) Lithium Iron Phosphate battery 51.2V (48V) 5.12kWh with 100AH internal BMS, based on the same subset features of the previous industry renowned EG4-LL Battery. Fully Compatible with Previous EG4-LL Model(See below).
Composed of (16) UL listed prismatic 3.2V cells in series which have been tested at 7,000 deep discharge cycles to 80% DoD – fully charge and discharge this battery daily for over 15 years without issue. Reliable and rigorously tested, with a 99% operating efficiency.
Includes an LCD screen to quickly view your batteries’ most important information, but now features Selectable closed-loop inverter communications including Schneider, Solark, Victron, Growatt, and EG4! A simple plug-and-play interface that has all the essentials built in for easy setup.
EG4-LL [Lifetime Lithium] Best In Class Solar Rack Battery
Rated for 7000 deep charge & discharge cycles 15-year life with 80% depth of discharge daily, designed for up to 20-year life
Tier One, A+ Cell Composition, 99% Efficiency LiFePo4 16-Cell Pack
#1 Energy Density Server Rack Battery Form Factor
Selectable closed-loop inverter communications including Schneider, Solark, Victron, Growatt, and EG4!
Dual Onboard automatic fire arrestors- Failsafe operation in high-risk environments and to protect against rare hardware failure on high voltage solar charge controllers!
Parallel up to 16 batteries- Get the most power possible! Up to 81.9kWh while maintaining BMS communications!
Have existing V1 EG4-LL Batteries? Enable expanded communication for existing V1 EG4-LL Battery Banks by using a new V2 EG4-LL Battery as your master battery. This feature will be available with a firmware upgrade that will be released soon.
Performance Components
Reliable Built-In EG4 Smart BMS, Voltage, Current, Temp. and Health Management
Stress-Free Battery Bank Expansion Capacity
Cell & Module Voltage Protection
Short Circuit Protection >250A <0.1mS
Temperature Protection
Operating Power Consumption <25mA
Advanced Configurability
On-board LCD Screen
PC Monitoring Software
Lifetime firmware updates
Additional Information
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Kilowatt-hour(s): 5.12kWh
Dimensions: 17.7" x 19.3" x 6.1"
Design Life: +15 Years at 80% DoD
Communications: RS485/CAN: Schneider, Solark, Victron, Growatt, EG4+
Reliability & Safety Testing
Dual On-board Fire Arrestors
Environmentally Friendly & Lead-Free
Design Optimized and Tested by EG4's R&D Solar Laboratory. In-House & Texas Based
10-Year Warranty Supported and serviced out of the USA
EG4 Storage Solutions 3 Slot Battery Rack, featuring an enclosed cabinet design. The cabinet door swings open on a sturdy hinge, allowing easy access to the equipment and cables for easy installation. The door panel locks securely to help prevent damage, tampering, and/or theft. The front and back panels are vented, allowing air to flow freely and keeping equipment cool. Top ports allow for easy cable routing.
The Rack comes fully assembled and ready to roll (with casters, of course, making it a mobile-ready rack). The casters are removable for easy stacking of the enclosure cabinets. Castors and hardware come inside the rack and then are simply bolted on out of the box.
Included:
Assembled EG4 3 Slot Battery Rack + Castors
Features:
Constructed from heavy-duty steel
Durable black powder-coated finish
Dimensions: 24 in x 26 in x 28 in
Specifications
Battery Capacity: 3 EG4 Rack Batteries
Weight Capacity: 450lbs
Size: 23.75"L x 24.625"W x 27.7"H
 Still have questions? Give us a call today at 877-242-2792
