Description

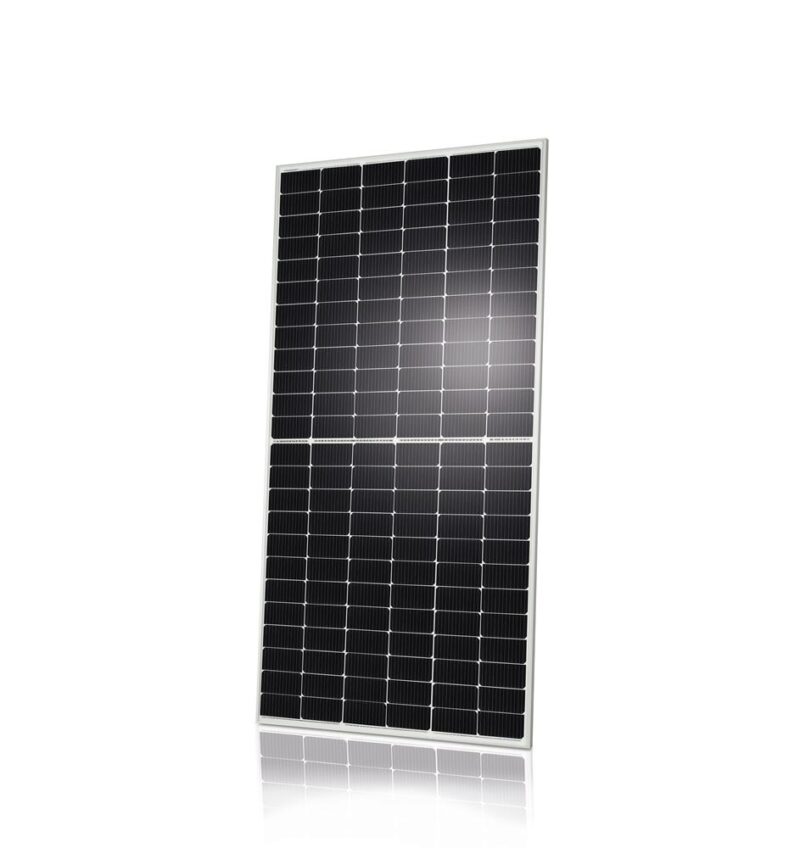

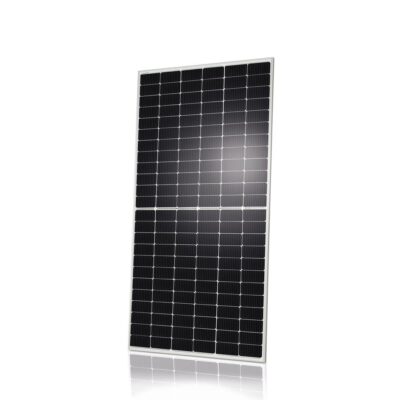

Hanwha QCells 400 Watts Silver Frame PV Solar Module DUO L-G5.3 Half Cell
Q.ANTUM TECHNOLOGY: LOW LEVELISED COST OF ELECTRICITY
Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 20.1%.
INNOVATIVE ALL-WEATHER TECHNOLOGY
Optimal yields, whatever the weather with excellent low-light and temperature behaviour.
ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™.
EXTREME WEATHER RATING
High-tech aluminium alloy frame, certified for high snow (5400Pa) and wind loads (4000Pa).
A RELIABLE INVESTMENT
Inclusive 12-year product warranty and 25-year linear performance warranty.
STATE OF THE ART MODULE TECHNOLOGY
Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology.

Mechanical Data & Components
Module technology: Mono
Dimensions: 81.9 in (length) × 40.6 in (width) × 1.38 in (height)
Weight: 54 lb
Cells per module: 144
Module frame material: Anodized aluminum
Module frame thickness: 35mm
Module backsheet material: White
Module connector: MC4
Module output cables: PV Wire
Electrical Characteristics
Module watts STC: 420 Watts
Module watts PTC: 374.95 Watts
Max power voltage (Vmpp): 41.04 Volts
Max power current (Impp): 9.75 Amps
Open circuit voltage (Voc): 49 Volts
Short circuit current (Isc): 10.24 Amps
Max system voltage: 1500 Volts
Series fuse rating: 20 Amps
Module efficiency: 19.9%
Temp coefficient (Pmpp): -0.36%
Temp coefficient (Voc): -0.27%
Fire classification (type): 1
