Description

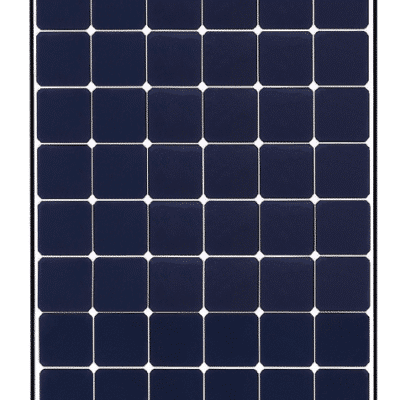

LG Solar > 370 Watt Black Frame NeON R Mono Solar Panel
40mm Black Frame, White Backsheet.60 Cell, high efficiency monocrystalline PV module.
Detailed Information
LG NeON® R (LG370Q1C-V5) is powerful new solar product with world-class performance. Employing a new electrode-free cell structure on the front of the panel, LG NeON® R maximizes the utilization of the available light while also enhancing reliability. LG NeON® R demonstrates LG’s ongoing dedication to deliver real value: It combines an industry-leading warranty with superior durability and performance under real-world conditions, plus a modern aesthetic that blends seamlessly with virtually any roof.
Features
25-Year WarrantyLG offers the longest warranty in the industry, covering the NeON® R for 25 years. At that time, the panel is guaranteed to deliver at least 90.8% of its original performance.
Roof-Friendly DesignLG NeON® R has been designed with curb appeal in mind. By removing the electrodes from the visible side, LG has created a cleaner look that won’t detract from the beauty of your home.
Better Performance on Sunny DaysThe panel now offers an improved temperature coefficient, so it works more efficiently than before even on hot, sunny days.
High Power OutputExpertly engineered for enhanced power output, the LG NeON® R assures exceptional results even in more compact installations with reduced surface area.
Outstanding DurabilityLWith its newly reinforced frame, LG NeON® R can handle an impressive front load of up to 6,000 Pa and a rear load up to 5,400 Pa.

Mechanical Data & Components
Technology: Monocrystalline (Mono)
Dimensions: 66.9 x 40 x 1.57 inches
Weight: 38.58 lbs
Cells per module: 60
Connector Type: MC4
Junction Box: IP68 with 3 Bypass Diodes
Module frame material: Anodized Aluminum
Module frame thickness: 40 mm
Electrical Characteristics
Nominal Maximum Power (Pmax): 370 W
MPP Voltage (Vmpp): 37 V
MPP Current (Impp): 10.01 A
Open Circuit Voltage (Voc): 42.8 V
Short Circuit Current (Isc): 10.82 A
Module Efficiency: 21.4%
Maximum System Voltage: 1000 V
Maximum Series Fuse Rating: 20 A
Power Tolerance: 0 ~ +3
Module Fire Performance (USA): Type 1
