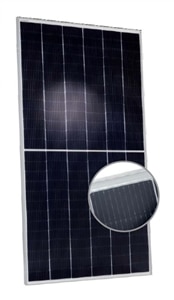

Qcells > 480 Watt BiFacial Mono Solar Panel – Pallet Quantity – 29 Solar Panels
Cell, 35mm Clear Anodized Aluminum Frame, BiFacial Double Glass Module,
Back cover – 2 mm semi-tempered glass
|Model||Q.PEAK DUO XL G10.3 / BFG 480|
|Series||Q.PEAK DUO XL G10.3 / BFG|
|Pallet Quantity||29 Solar Panels|
|Dimensions||87.2″ x 41.1″ x 1.38″|
|Connector||Junction Box w/ Multi-Contact MC4|
|Watts (STC)||480 W|
|Max Power Voltage (VMPP)||45.33 V|
|Max Power Current (IMPP)||10.59 A|
|Open Circuit Voltage (VOC)||53.39 V|
|Short Circuit Current (ISC)||11.12 A|
|Max System Voltage (UL)||DC 1500 V|
- 12 Years Product
- 30 Years linear performance
- BIFACIAL ENERGY YIELD GAIN OF UP TO 20 %
Bifacial Q.ANTUM solar cells with zero gap cell layout make efficient use of light shining on the module rear-side for radically improved LCOE.
- LOW ELECTRICITY GENERATION COSTS
Q.ANTUM DUO Z combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology for higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 20.7 %.
- INNOVATIVE ALL-WEATHER TECHNOLOGY
Optimal yields, whatever the weather with excellent low-light and temperature behavior.
- ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q.
- FRAME FOR VERSATILE MOUNTING OPTIONS
High-tech aluminum alloy frame protects from damage, enables use of a wide range of mounting structures and is certified regarding IEC for high snow (5400 Pa) and wind loads (2400 Pa).
- A RELIABLE INVESTMENT
Double glass module design enables extended lifetime with 12-year product warranty and improved 30-year performance warranty.
