Description

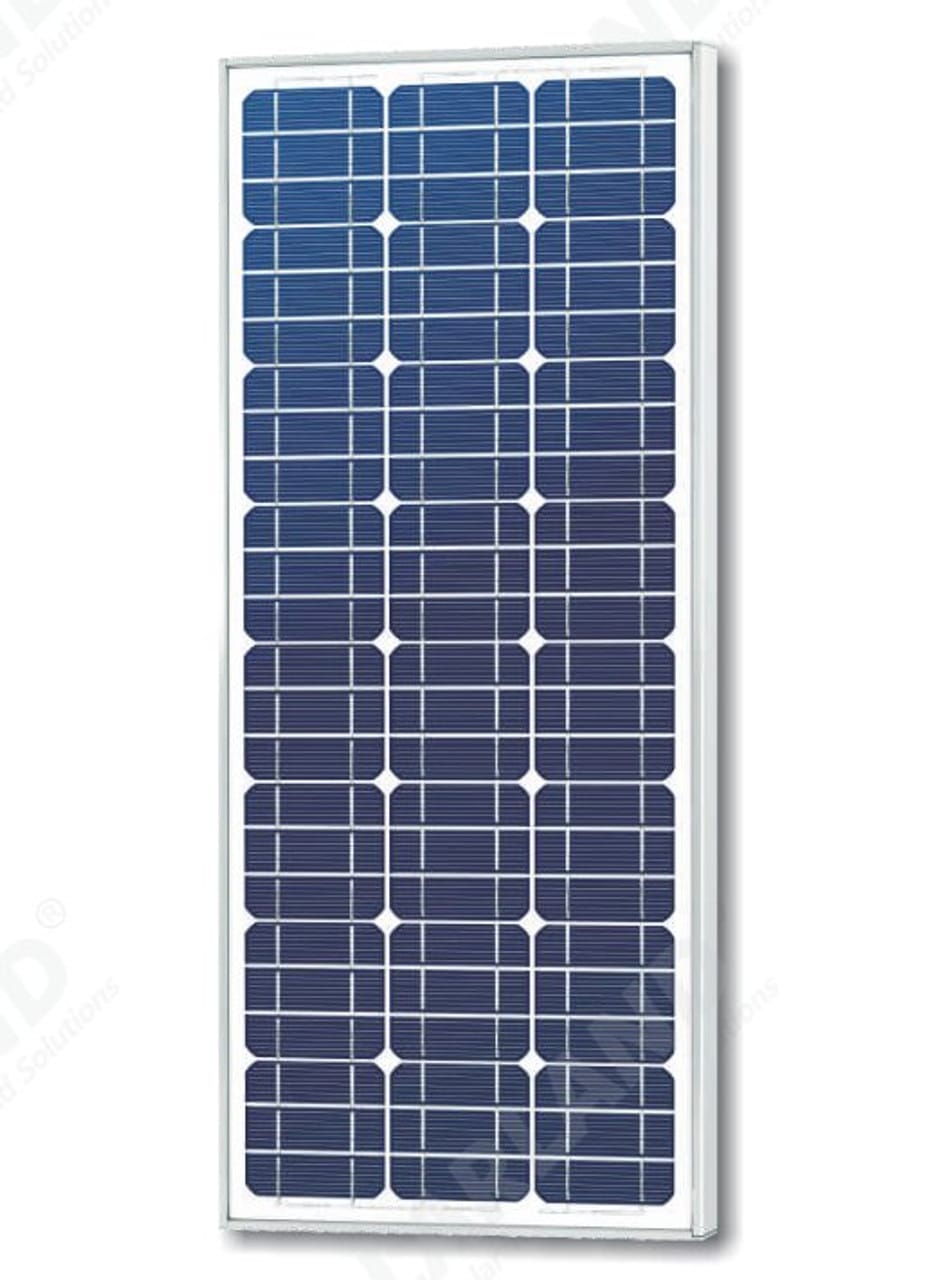

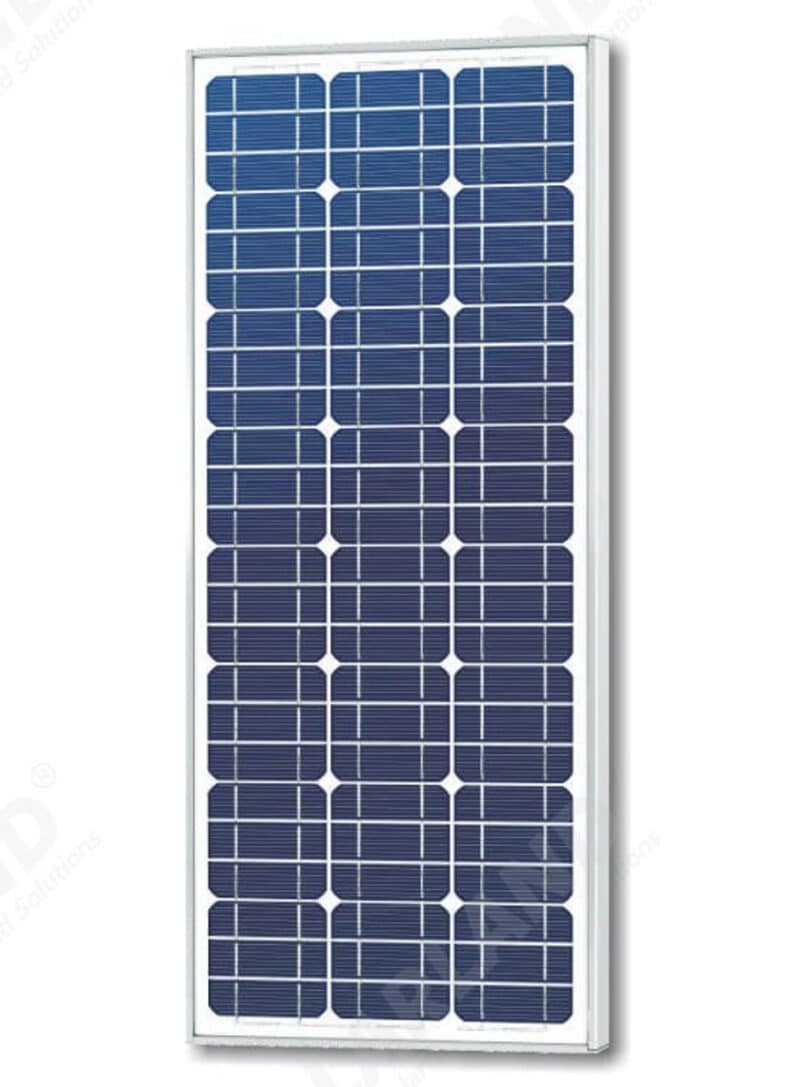

The SLP100-12 100 watt, 12 volt CSA-certified C1D2 solar panel from Solarland® is an exceptionally high-quality solar module that meets the rigorous testing standards set forth by CSA. Recognized and accepted world-wide in a wide range of industrial applications, this the absolute best PV module solution for your solar application.

Product Specifications

Product Identification

• ModelSLP100-12C1D2
• SeriesSLP C1D2
• ManufacturerSolarland®

Electrical

• Watts (STC)100 W
• Max Power Voltage (VMPP)18.55 V
• Max Power Current (IMPP)5.39 A
• Open Circuit Voltage (VOC)22.07 V
• Short Circuit Current (ISC)5.72 A
• Number of Cells36(4X9)

Mechanical

• TypePoly-Crystalline
• Dimensions41.81in. (1062mm) x 26.57in. (675mm) x 1.38in. (35mm)
• Weight19.62lbs (8.9kg)
• FrameHeavy-duty anodized aluminum
• ConnectorJunction Box

Product Diagram(s)

Product Downloads

Solarland® Installation Manual
