Description

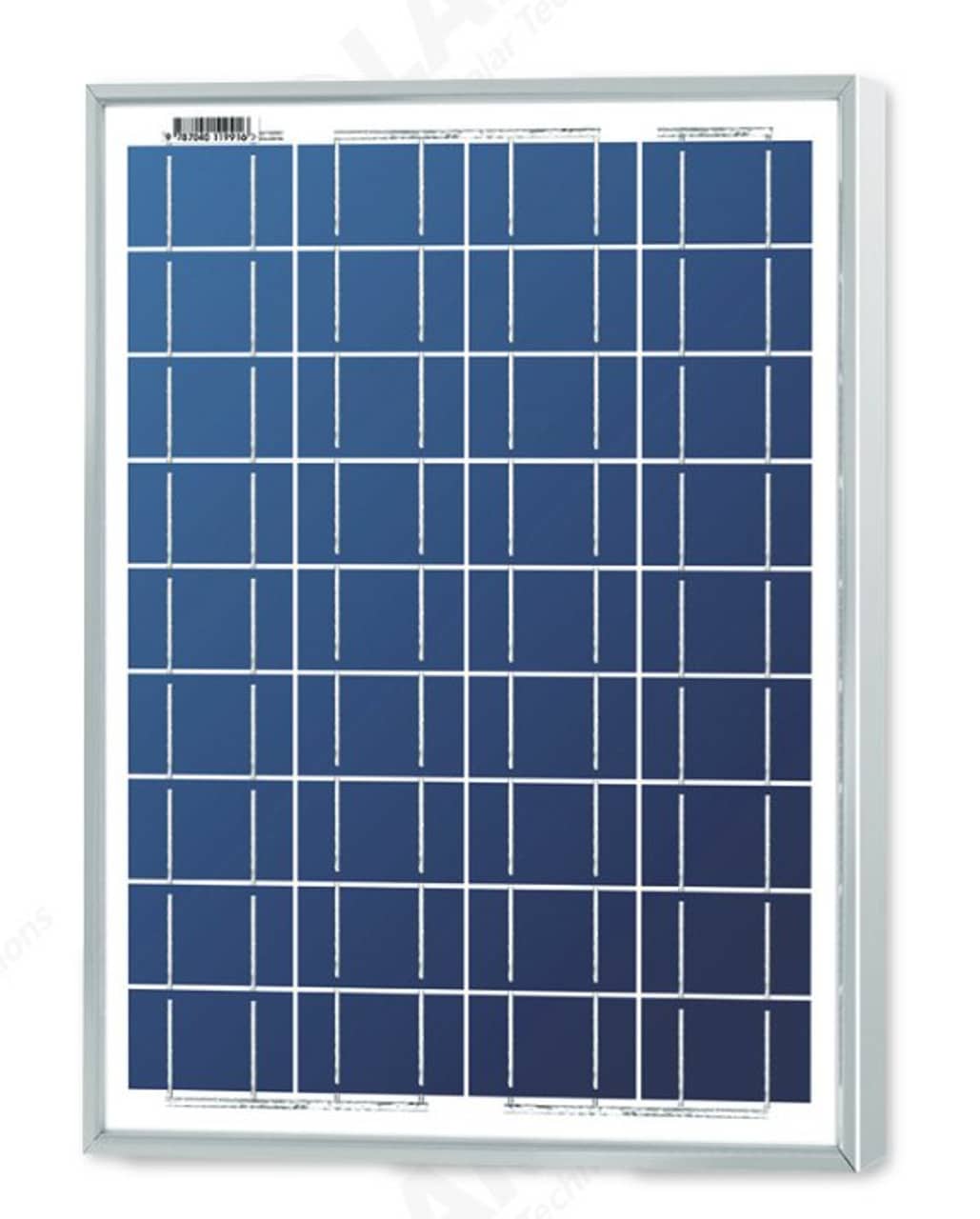

The SLP012-12C1D2 12 watt, 12 volt CSA-certified C1D2 solar panel from Solarland® is an exceptionally high-quality solar module that meets the rigorous testing standards set forth by CSA. Recognized and accepted world-wide in a wide range of industrial applications, this the absolute best PV module solution for your solar application.

Product Specifications

Product Identification

• ModelSLP012-12C1D2
• SeriesSLP C1D2
• ManufacturerSolarland®

Electrical

• Watts (STC)12 W
• Max Power Voltage (VMPP)18.64 V
• Max Power Current (IMPP)0.64 A
• Open Circuit Voltage (VOC)22.18 V
• Short Circuit Current (ISC)0.68 A
• Number of Cells36 (6X6)

Mechanical

• TypePoly-Crystalline
• Dimensions14.06in. (357mm) x 11.89in. (302mm) x 1.18in. (30mm)
• Weight3.53lbs (1.6kg)
• FrameHeavy-duty anodized aluminum
• ConnectorJunction Box

Product Diagram(s)

Product Downloads

Solarland® Installation Manual
