Description

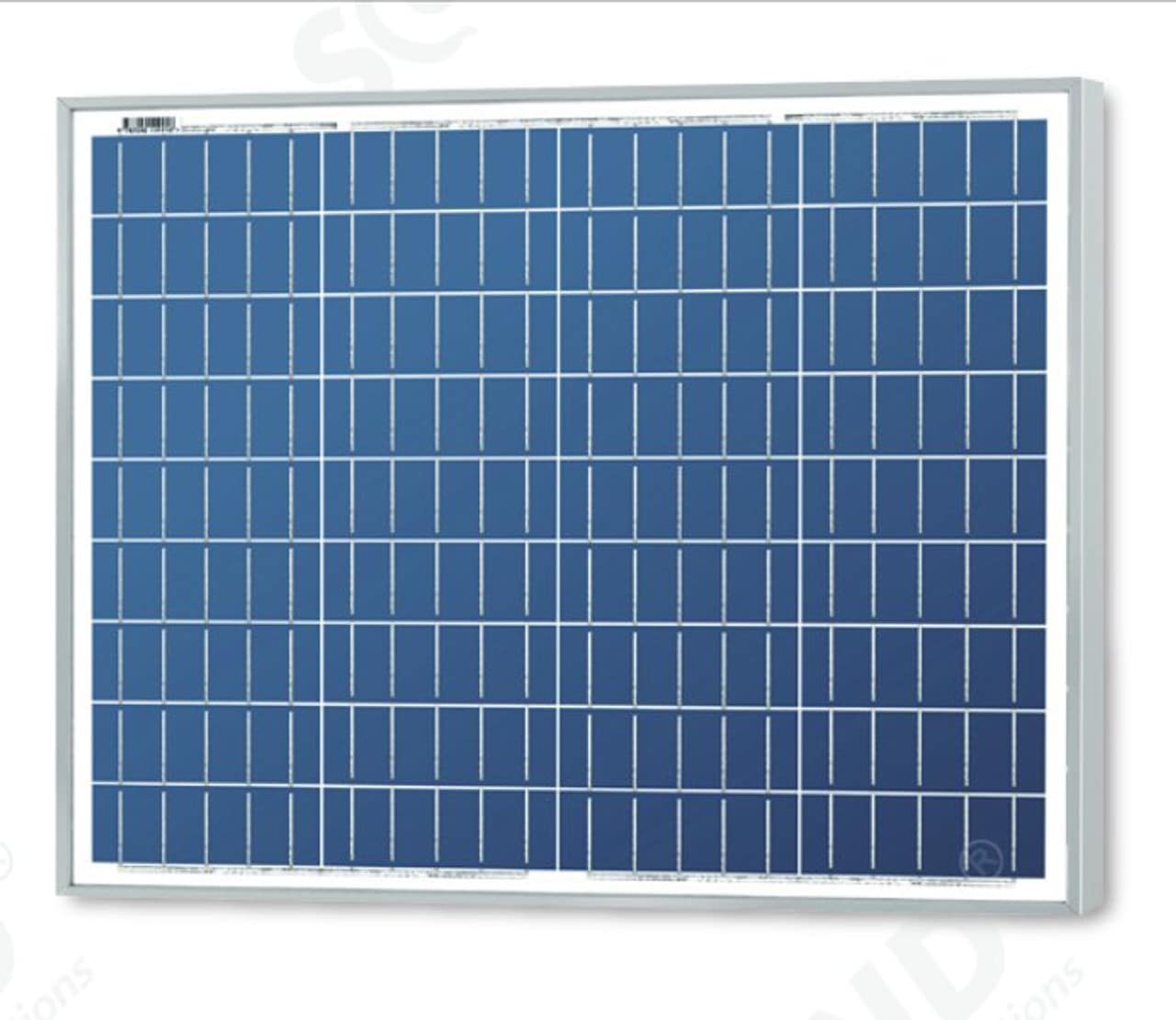

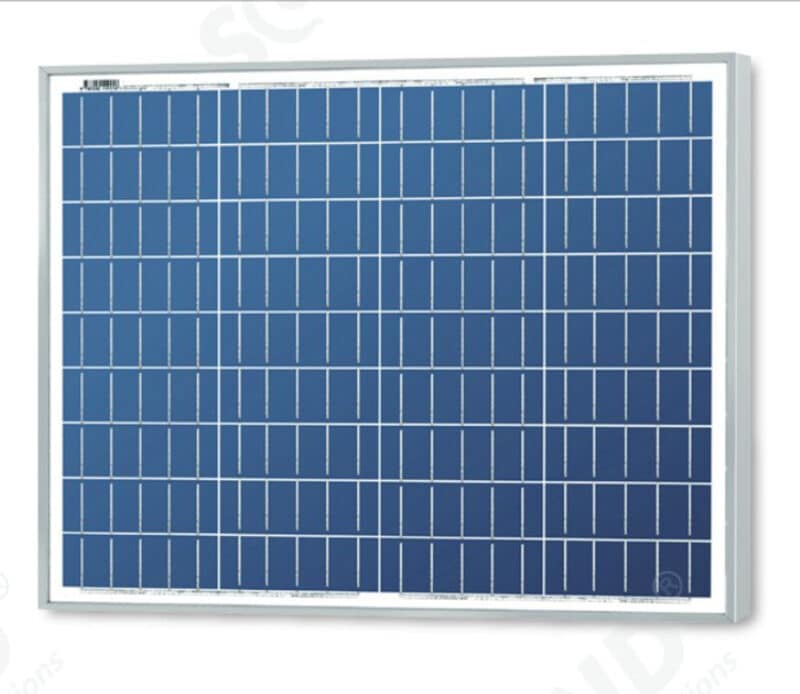

The SLP050-12C 50 watt, 12 volt solar panel from Solarland® is CSA-certified for world-wide use in standard PV applications. Manufactured to the exacting test standards of CSA, this panel provides exceptional performance and a rugged construction that is recognized world-wide and is used in millions of solar applications.

Product Specifications

Product Identification

• ModelSLP050-12C
• SeriesSLP C
• ManufacturerSolarland®

Electrical

• Watts (STC)50 W
• Max Power Voltage (VMPP)18.64 V
• Max Power Current (IMPP)2.68 A
• Open Circuit Voltage (VOC)22.18 V
• Short Circuit Current (ISC)2.85 A
• Number of Cells36 (4X9)

Mechanical

• TypePoly-Crystalline
• Dimensions21.02in. (534mm) x 26.57in. (675mm) x 1.38in. (35mm)
• Weight10.36lbs (4.7kg)
• FrameHeavy-duty anodized aluminum
• ConnectorJunction Box

Product Diagram(s)

Product Downloads

Solarland® Installation Manual
