Description

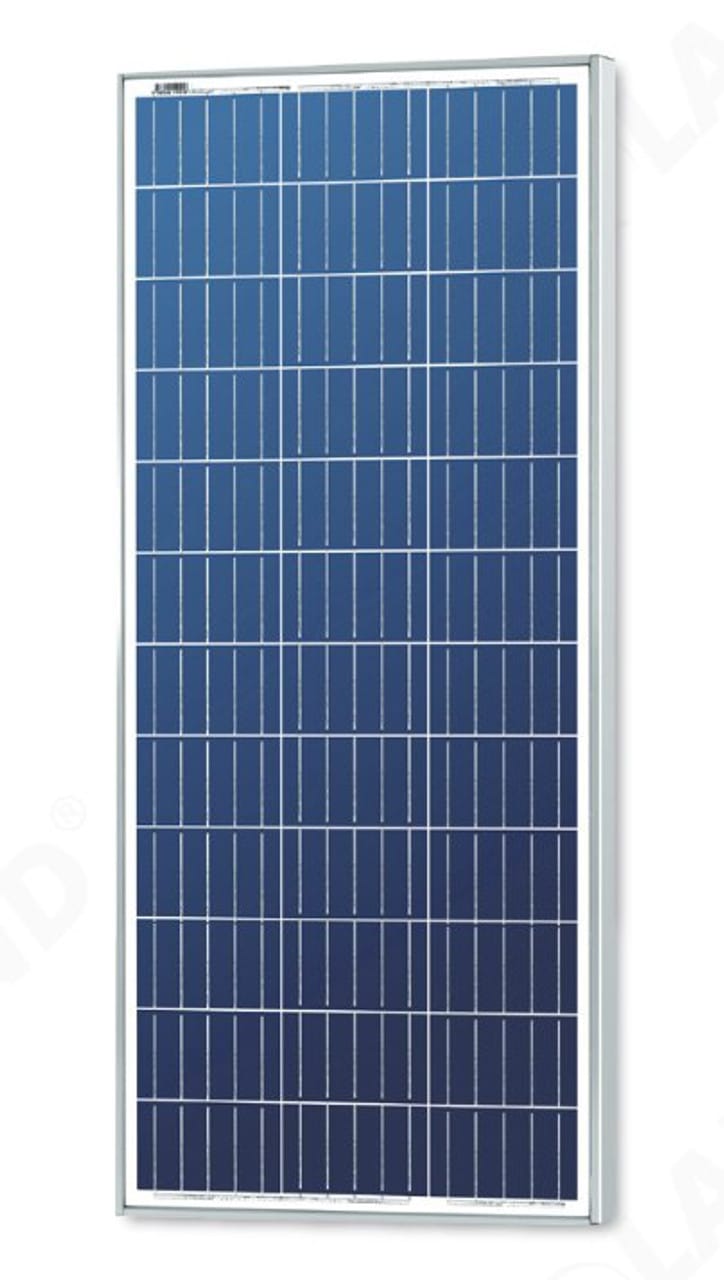

The SLP090-12F 90 watt, 12 volt solar panel from Solarland® is a poly-crystalline module that comes standard with QC Jbox and features a rugged design that includes a sturdy aluminum frame and high-transparency tempered glass that allows it to stand strong against the harshest of elements. With exceptional low-light power generation performance and standard 12V DC output, the SLP090-12F from Solarland® is the right solution for your solar power application.

• Nominal 12V DC for standard output.
• Outstanding low-light performance.
• Heavy-duty anodized frames.
• High transparent low-iron,tempered glass.
• Rugged design to withstand high wind pressure, hail and snow load.
• Aesthetic appearance.

Product Specifications

Product Identification

• ModelSLP090-12F
• SeriesSLP F
• ManufacturerSolarland®

Electrical

• Watts (STC)90 W
• Max Power Voltage (VMPP)17.2 V
• Max Power Current (IMPP)5.23 A
• Open Circuit Voltage (VOC)21.6 V
• Short Circuit Current (ISC)5.81 A
• Number of Cells36 (3X12)

Mechanical

• TypePoly-Crystalline
• Dimensions47.24in. (1200mm) x 20.75in. (527mm) x 1.73in. (44mm)
• Weight19.62lbs (8.90kg)
• FrameHeavy-duty anodized aluminum
• ConnectorJunction Box

Product Diagram(s)

Product Downloads

Solarland® Installation Manual
