Description

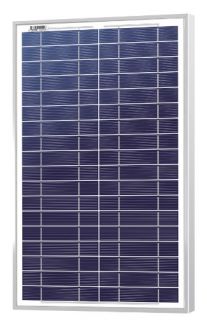

SolarLand Solar Panel 20W 12V SLP020-12U is a 20 watt 12 volt solar panel by SolarLand and use high-quality solar cells, and also have a 10-year warranty. They have an aluminum frame. These 12V solar panels for sale do not come with j-box wire leads. We recommend using 18-2 Tray Cable. Features of this 12V Solar Panel For Sale:- Nominal 12V DC for standard output. – Outstanding low-light performance. – Heavy-duty anodized frames. – High transparent low-iron, tempered glass. – Rugged design to withstand high wind pressure, hail, and snow load. – Aesthetic appearance.  Peak Power (Pmpp) 20 W Cell Type: Multi-crystalline Peak Power Voltage (Vmpp) 17.2 V Length: 22.68 in. Peak Power Current (Impp) 1.16 A Width: 14.06 in. Open Circuit Voltage (Voc) 21.6 V Depth incl. jbox: 1.18 in. Short Circuit Current: 1.31 A Depth excl. jbox: 1.18 in. Weight: 6.17 lbs. Nominal Voltage: 12 V Box Quantity: Any Limited Warrantee: 10 years SolarLand-SLP020-12U-Datasheet Wiring Instructions Peak Power (Pmpp) 20 W Cell Type: Polycrystalline Peak Power Voltage (Vmpp) 17.2 V Length: 22.68 in. Peak Power Current (Impp) 1.16 A Width: 14.06 in. Open Circuit Voltage (Voc) 21.6 V Depth incl. jbox: 1.18 in. Short Circuit Current: 1.31 A Depth excl. jbox: 1.18 in. Weight: 6.17 lbs. Nominal Voltage: 12 V Box Quantity: Any Limited Warranty: 10 years Documents:SolarLand Solar Panel 20W 12V – SLP020-12U Spec SheetSolarLand Solar Panel 20W 12V – SLP020-12U Wiring Instructions
