Description

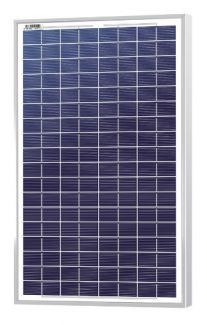

SolarLand Solar Panel 20W 24V SLP020-24U is a 20 watt 24-volt small solar panel by SolarLand and uses high quality polycrystalline solar cells, and has a 10-year warranty and an aluminum frame. These are great solar panels for use in 24-volt applications like remote industrial instrumentation or other off-grid 24 volt situations like gate openers, lighting, etc. These 20W solar panels do not come with j-box wire leads. We recommend using 18-2 Tray Cable. Features:- Nominal 24V DC for standard output. – Outstanding low-light performance. – Heavy-duty anodized frames. – High transparent low-iron, tempered glass. – Rugged design to withstand high wind pressure, hail, and snow load. – Aesthetic appearance.  Peak Power (Pmpp) 20 Watt Cell Type: Polycrystalline Peak Power Voltage (Vmpp) 34.4 Volts Length: 22.68 in Peak Power Current (Impp) 0.58 A Width: 14.06 in. Open Circuit Voltage (Voc) 43.2 Volts Depth: 1.18 in. Short Circuit Current: 0.68 A Nominal Voltage: 24 V Documents:SolarLand Solar Panel  20W 24V – SLP020-24U SpecsheetSolarLand Solar Panel  20W 24V – SLP020-24U Wiring Instructions
