Description

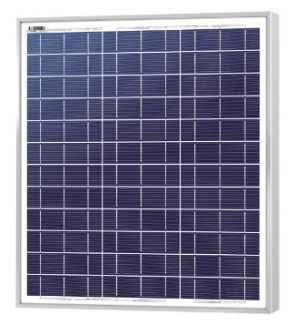

SolarLand Solar Panel 30W 12V SLP030-12U is a 12 volt 30 watt solar panel by SolarLand that uses high quality polycrystalline solar cells, has a 10-year warranty, and an aluminum frame, but does not come with j-box wire leads. We recommend 16-2 Tray Cable or 18-2 Tray Cable. 12V 30W Solar Panel Features:- Nominal 12V DC for standard output. – Outstanding low-light performance. – Heavy-duty anodized frames. – High transparency low-iron, tempered glass. – Rugged design to withstand high wind pressure, hail, and snow load. – Aesthetic appearance.  Peak Power (Pmpp) 30 W Cell Type: Multi-crystalline Peak Power Voltage (Vmpp) 17.2 V Length: 21.3 in. Peak Power Current (Impp) 1.74 A Width: 20.08 in. Open Circuit Voltage (Voc) 21.6 V Depth incl. jbox: 1.18 in. Short Circuit Current: 1.93 A Depth excl. jbox: 1.18 in. Weight: 8.27 lbs. Nominal Voltage: 12 V Box Quantity: Any Limited Warrantee: 10 years SolarLand-SLP030-12U-Datasheet Wiring Instructions Peak Power (Pmpp) 30 W Cell Type: Multi-crystalline Peak Power Voltage (Vmpp) 17.2 V Length: 21.3 in. Peak Power Current (Impp) 1.74 A Width: 20.08 in. Open Circuit Voltage (Voc) 21.6 V Depth incl. jbox: 1.18 in. Short Circuit Current: 1.93 A Depth excl. jbox: 1.18 in. Weight: 8.27 lbs. Nominal Voltage: 12 V Box Quantity: Any Limited Warranty: 10 years Documents:SolarLand Solar Panel 30W 12V – SLP030-12U SpecsheetSolarLand Solar Panel 30W 12V – SLP030-12U Wiring Instructions
